Testing
In this section, the basic building blocks in the chip are introduced.
Figure 1: ID/VGS

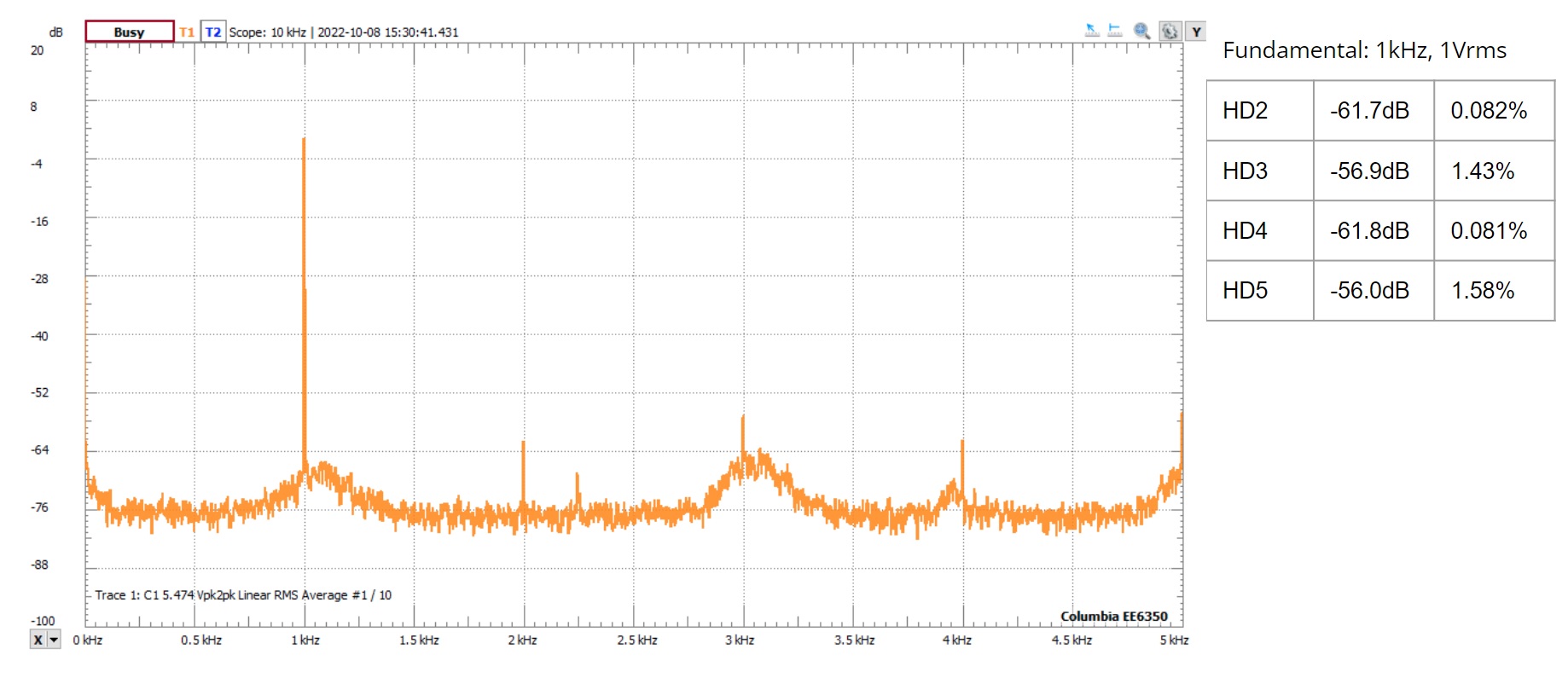

Figure 2: Harmonic Distortion

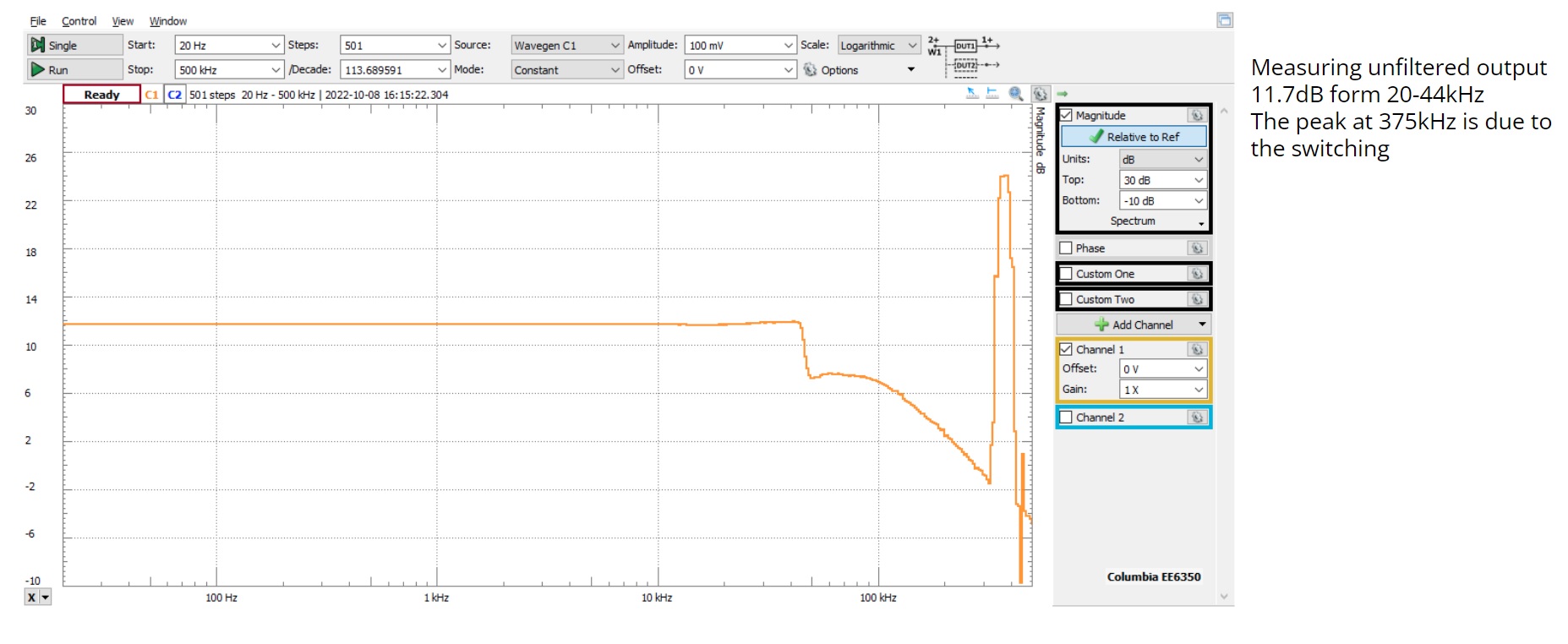

Figure 3: Frequency Response (Unfiltered)
The dead time is 58ns and the switching frequency is 375kHz due to parasitics of the PCB.
Figure 4: Dead Time
