IC Layout

The picture below shows a photo of the DM6350. Three pins were used as VDD and two for ground. The blocks were distributed along the die to minimize the trace resistance to the pins, and arranged to follow the signal flow through the system.

scope_3
Fig. 10 - Layout of the DM6350 with labeled blocks

Picture_Die

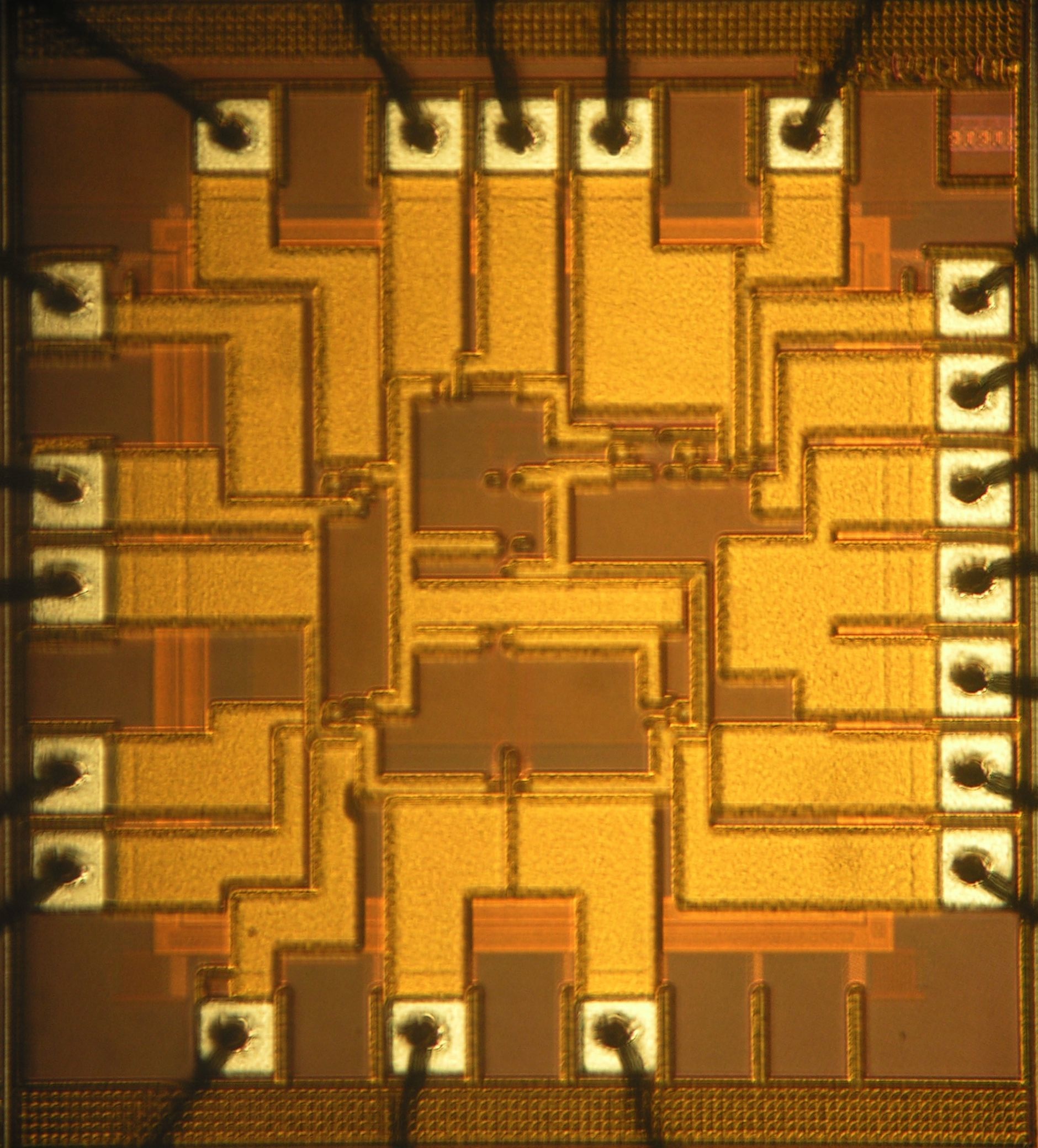

Fig. 11 - Die photo of the DM6350
