Results
LC Oscillator
Output Waveform

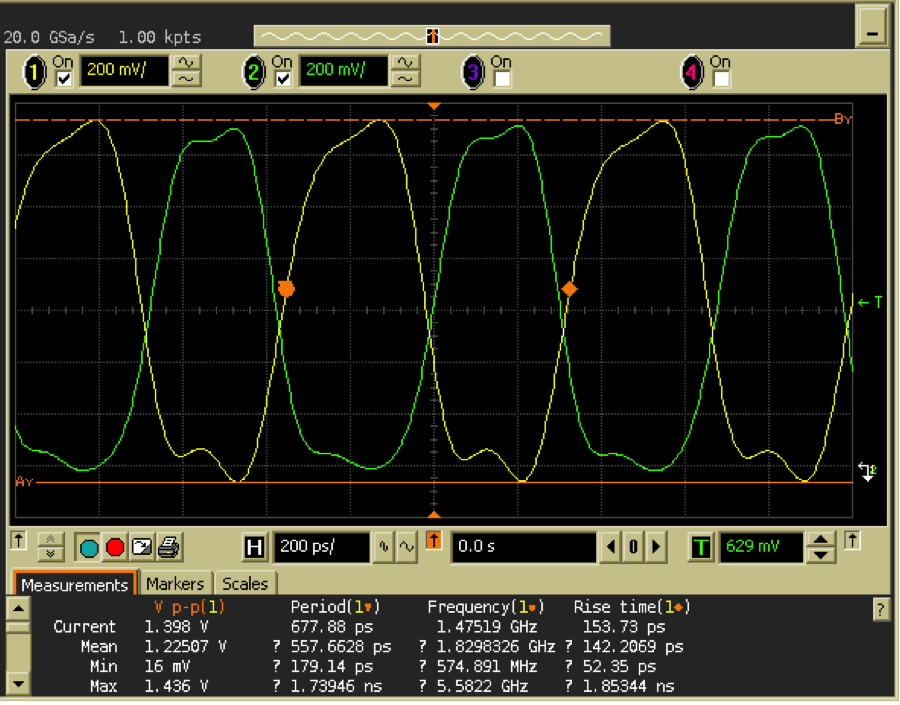

Fig.10: Low Frequency LC Output (Vc= 0V)
Fig.11: High Frequency LC Output (Vc= 1.4V)
Output Power

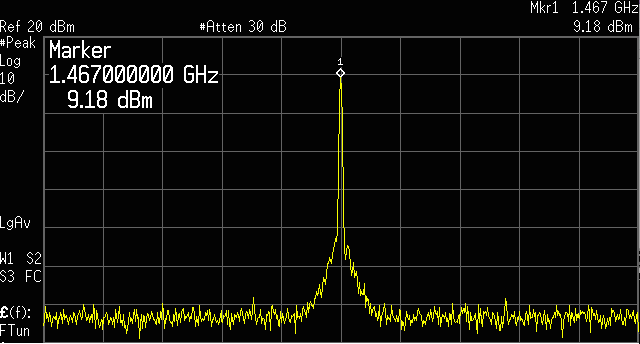

Fig.12: LC Oscillator Output Power Spectrum
Frequency Variability

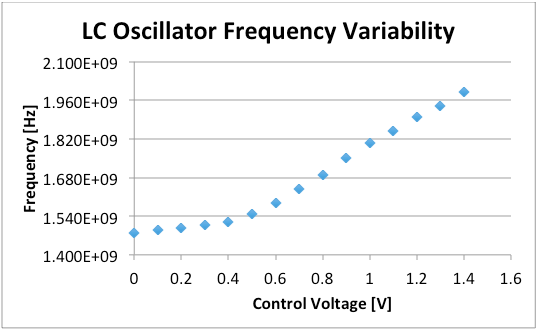

Fig.13: LC Oscillator Frequency Variability (34%)
Ring Oscillator
Output Waveform
Fig.14: Ring Oscillator Output
Output Power
Fig.15: Ring Oscillator Output Power Spectrum
Frequency Variability

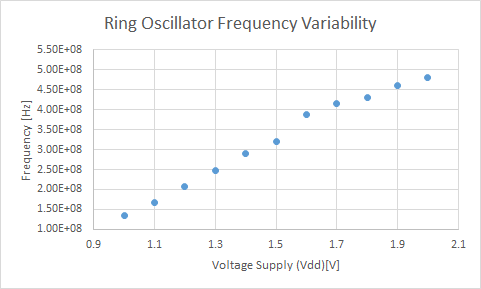

Fig.15: Ring Oscillator Frequency Variability
Summary

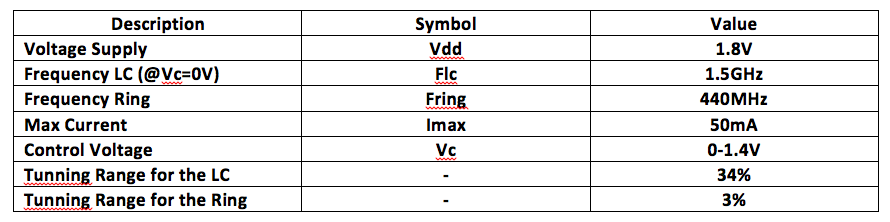

Fig.17: Performance Summary Table
